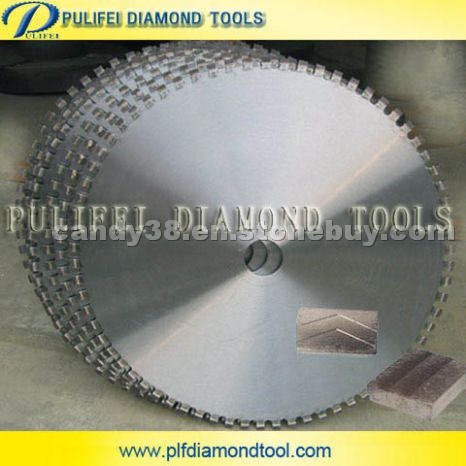

Diamond saw blade for granite block cutting

• Place of Origin:

   China

• Type:

  Sawing and Cutting Machinery

• Genre:

  Machinery & Equipment

• sCode:

  STPR1435837

• Place of Origin:

  China
• Product Description
  Diamond Saw Blade For Block Cutting - stone tools
  1)Diamond Saw Blades for block cutting of slabs of Granite, Sandstone, Slate, Kinds of Hard Stones
  with quartz, Suitable for for Bridge Cutting Machine and Single Arm Machine.
  The diameter range from 800-3500mm
  3)Normanl and silent type are both available.
  4)The segments can be welded on the saw base body,laser welded or silver welded .
  5) High effectivity, especialy for the sharpness request; Improve working conditions and reduce
  environmental pollution.
  Specification for you reference :
  Dia.of saw blade
  Inch/mm Hole(mm) Thickness(mm) Teeth No(pcs) Welding method
  32"/800mm
  50 4.2/4.5/5mm 46/50 Silver welded
  Laser welded
  36"/900mm 60 5.0/5.5mm 64
  80
  40"/1000mm 100 5.0/5.5mm 70/72

  120

  44"/1100mm 150 5.0/5.5mm 74

  48"/1200mm 5.0/6.0mm 80

  51"/1300mm 6.0/6.5mm 88
  55"/1400mm 6.5/7.2mm 96
  64"/1600mm 3.5/4.5/6.5/7.2mm 104/108
  72"/1800mm 5.0/7.2/8.0mm 120
  80"/2000mm 4.0/4.5/7.2/8.0/9.0mm 128
  88"/2200mm 5.5/9mm 132/136
  100"/2500mm 7.2/9mm 140
  120"/3000mm 9.0/10mm 160
  140"/3500mm 9.0/10mm 180
